Foot pedal FP-2
The FP2 foot pedal is the ideal addition to the LIMEX MIDI MPRX system. Combined with the MC12 controller, you get comprehensive and practical control options for optimal music creation - wired or wireless.
The LIMEX foot pedal FP2 can only be used in conjunction with a LIMEX MIDI system MPRX!
INPUT
The foot pedal cable is connected here.
INFO LED's
Data traffic status indicators.
USB
Lights up short when a key is pressed or data is sent via USB.
MIDI IN
Lights up short when MIDI data is received from the FP2.
BLUETOOTH
Lights up when the FP2 is connected to Bluetooth (only with built-in Bluetooth module).
KEY LED's
Key colors indicate the area affiliation - LIVE = green, STYLE = red, MIDI FILE = blue, MP3 = purple.
KEYS S1 - S4
Buttons for switching the four LIMEX MPRX scenes.
KEYS A - D
Universal buttons with different functions - programmable via APP.
KEYS 1 - 4
Universal buttons with different functions - programmable via APP.
USB 1
Tablet connection 1 for communication with the "LIMEX APP".
USB 2
Tablet connection 2 only song lyrics are displayed here.
USB 3
Tablet connection 3 only song lyrics are displayed here.
Foot pedal wiring and connections

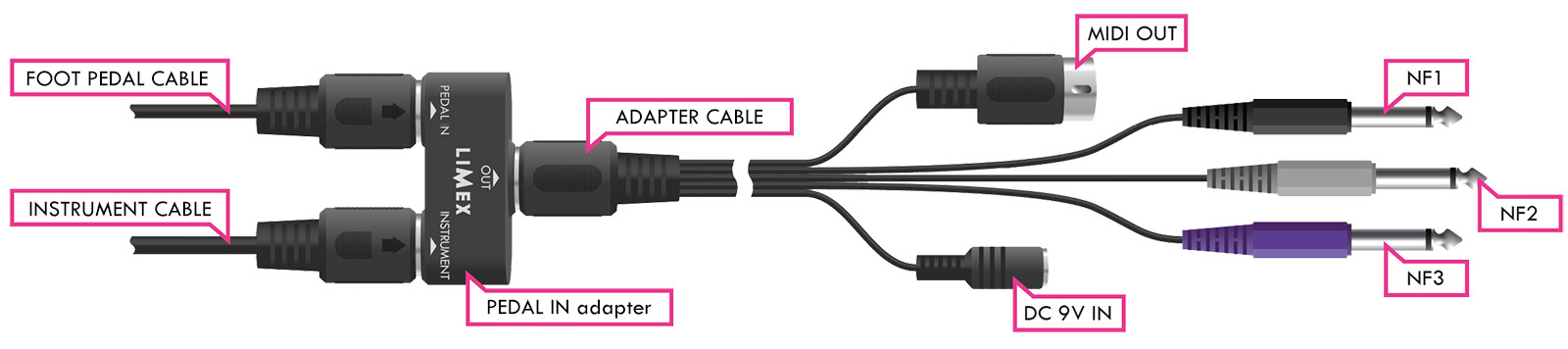

The "PEDAL IN Adapter" is connected between the control cable and the adapter cable (picture).

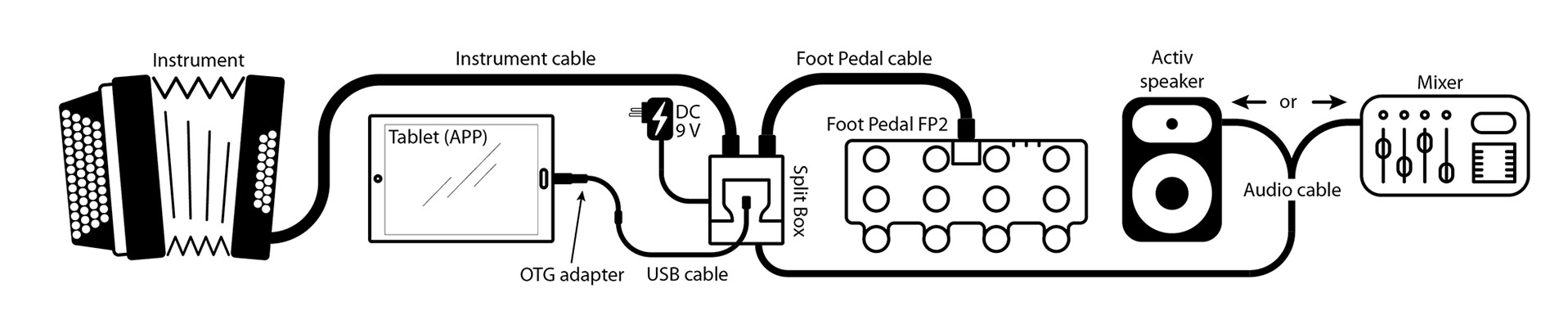

Connection v1
with Split Box

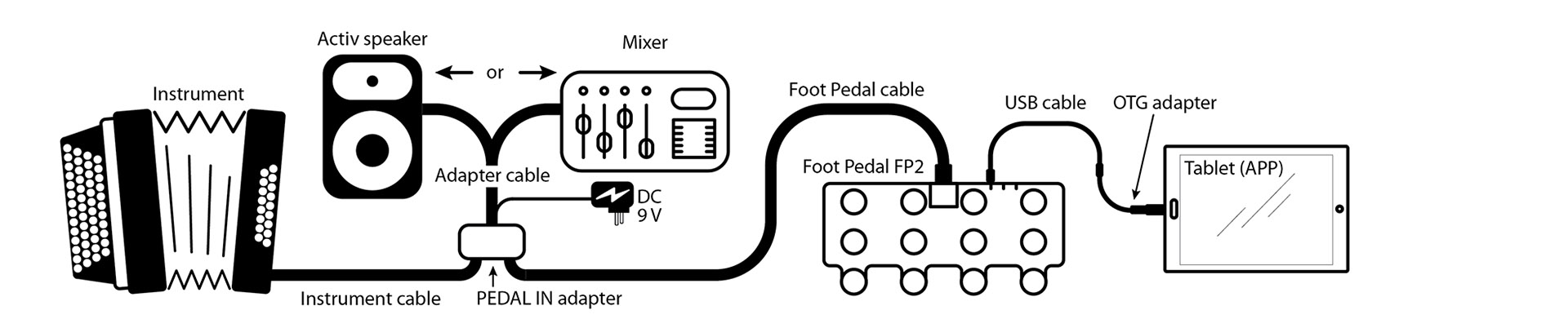

Connection v2
with PEDAL IN Adapter

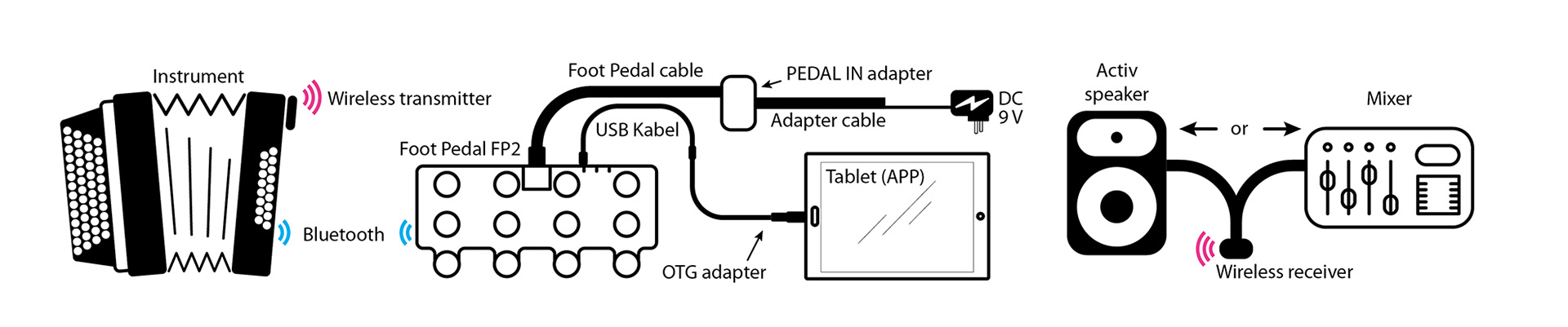

Connection v3
With Bluetooth & Wireless System
Functions
Various functions can be easily programmed to the pedal buttons using the LIMEX app for easier creation and optimal use of the MPRX MIDI system. The FP2 pedal app can only be used with the built-in USB module (3x USB ports - with the option of subsequent installation) or the SplitBox interface.
You need OTG adapter to connect to with an Android tablet.
The FP2 pedal's function controls are divided into four groups, which are indicated by four different button colors:
Live (Patch)
Style
MIDI File
MP3
Live (Patch)
• S1
• S2
• S3
• S4
• Patch +/-
• Song +/-
* Sound 1 A/B
* Sound 2 A/B
* Sustain
• SysEx Data
• Text +
• Patch / Style (PB)
• Select Key
• Diskant on/off
• FX Vocal Mute
• Organ Fast / Slow
* Mex Bass short/long
* Mex Guitar short/long
* Mex Guitar Arpeggio
* Mex Guitar on/off
* Mex Groove on/off
* Mex Voice on/off
* Mex Voice Preset
** Transpose +/-
** LED on/off
Style
• Start-Stop / Key Start
• Break
• Intro / Ending
• Var A B C D
• Fill In
• Tempo +5
• Tempo -5
• SysEx Data
** Sty/Patch +1 / 0
** Sty/Patch +2 / 0
MIDI File
• Start-Stop / Key Start
• Break
• Fade Out
• Tempo +/-
• Tempo +5/-5
** Sty/Patch +1 / 0
** Sty/Patch +2 / 0
MP3
• Start-Stop
• Endless Play
• Fade Out
• Break
* Available only with “Plug-In”.
** Only by using LIMEX ELHA (electronic accordion).
System requirements: Tablet with Android 12 system and later, computer with Windows 10/11, Chrome browser, USB module (option of subsequent installation) or LIMEX SplitBox interface, OTG adapter (or cable adapter) for connection to the tablet.
Further information and descriptions can be found in the manual.
Manual (PDF file - german only)
